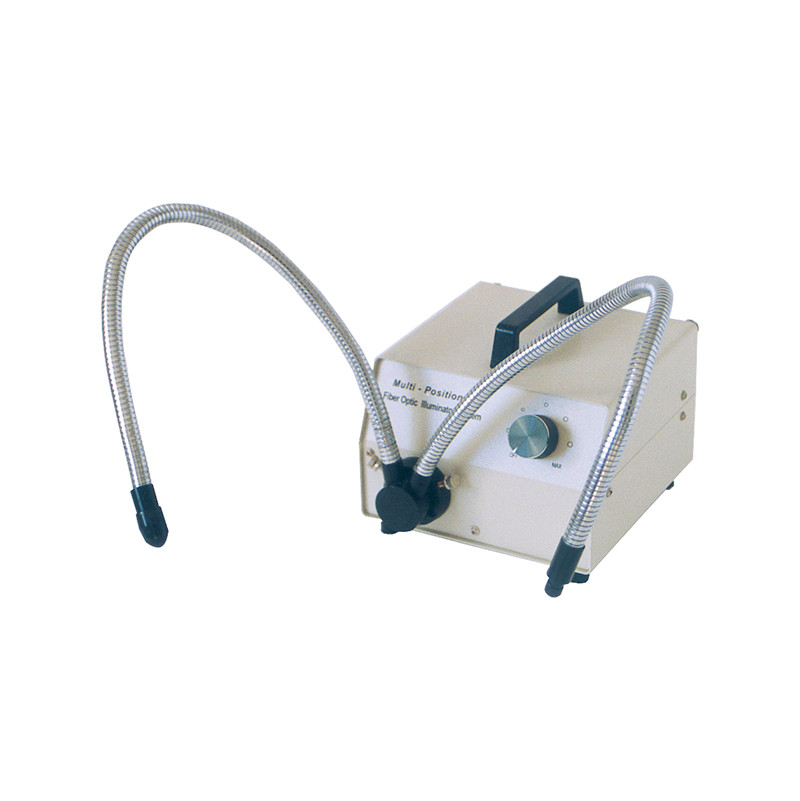

LG-150 II Double fiber cold light source
Performance introduction
LG-150 cold light has applied cold light source technology at home
and abroad. It's equipped with well-designed high-current
stabilized switching power supply, wide voltage control range, good
linear dimming, drive circuit with novel high-power semiconductor
components. All key components are of import brands, with the
following characteristics:
A. Wide range of power supply voltage: when the voltage fluctuates
between 198V~242V, the output voltage is stable and the color
temperature of the lamp is constant. No need for stabilized voltage
supply, which extends the service life of the lamp.
B. Good and comfortable linear dimming from weak to strong.
C. This cold light source has strong anti-interference ability. It
will not interfere with other devices or get interfered by other
devices. Its thyristor circuit has overcome the interference with
the power grid and other sensitive device, making it an
environmentally friendly cold light source.
Instructions
A. Make sure the power supply voltage is 220V, 50Hz, and the ground
connection is sound. Connect the power cord to the light.
B. Insert the rear port of the optical fiber into the output socket
of the cold light source and tighten the two fastening screws.
C. Turn the dimmer counterclockwise to the end and turn on the power
switch, then the lamp is slightly light. After that, turn the
dimmer clockwise to adjust the brightness of the lamp.
Technical Parameters
| Power supply voltage | 220V±20V 50Hz±1Hz |
| Load power | 180W |
| Color temperature | 3200K |
| Optical port size | 5mm |
| Ground leakage current | 0.5Ma |
| Noise | 50Db |
| Operating ambient temperature | -10°C~45°C |
| Normal working temperature of shell | 55℃ |
Automatic protection in case of over-voltage, over-current and
short-circuit. Output voltage change at full load or empty load is
less than 0.05V.
Product
Application
Application areas for our products include crime scene
investigation, fingerprint collection and development, footprint
collection and development, tool marks collection, trace evidence
collection, documents examination, forensic medical examination,
forensic evidence collection, DNA collection, DNA disinfection,
criminal photography, criminal investigation light source, narcotic
drugs test, poison test, evidence packaging, evidence marking,
crime scene plotting, crime scene protection, human body protection
on crime scene.
