P031 BTGP-IV Polarized light evidence photography stand

Ask Lasest Price
Brand Name :	Danmei
Model Number :	No.P031 BTGP-IV
Price :	$700.00/piece
Payment Terms :	L/C, D/A, D/P, T/T
Delivery Time :	5-8 days

Add to Cart

Product Details
Company Profile

P031 BTGP-IV Polarized light evidence photography stand

BTGP-IV Polarized light evidence photography stand

Function

White light photography, shadowless photography, polarized light photography and color separation photography.

Content

Name	Specification	Name	Specification
Baseplate	1 piece	Light filter	5 pieces
Baseplate support	1 piece	Conversion adapter	4 pieces
Column	1 piece	flexible arm	1 piece
Shadowless light box	1 piece	White light	2 sets
Uniform light	1 piece	Light stand	2 sets
Optical analyzer	1 piece	Hex wrench	1 piece
Polarizer	1 piece	Screwdriver	1 piece

Specifications

Baseplate size	800 x 600mm
Baseplate support	length 600, width 400, height 400mm
Column length	1000mm
White light	LED white light, 2x27W
Shadowless light box	620 x 470 x 33mm
Uniform light	20W LED
Conversion adapter	58-62, 62-67, 67-72, 72-77mm
Analyzer	M58mm, linear polarization
Polarizer	M62mm, linear polarization
Light filter	M58mm, red, orange, yellow, green, blue
Flexible arm	length 900mm
Power supply	AC220V, 50Hz

Method of use

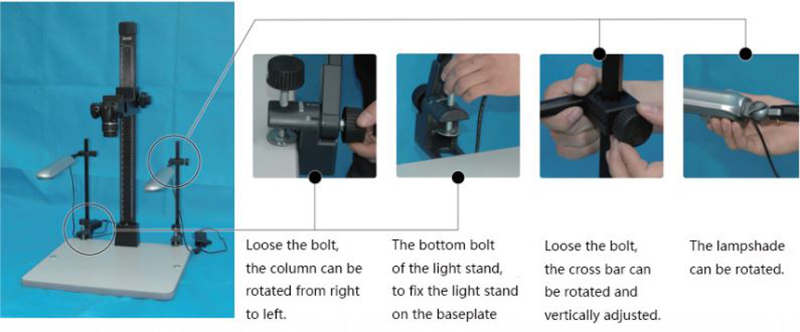

A. Place the baseplate on the plate support, mount the column on the baseplate, and fix the camera on the camera seat (vertically movable along the column). The baseplate is 400mm from the ground, which is suitable for operation.

B. Rotate the crank handle on the camera seat to move the camera seat vertically along the column to get the ideal photography distance. The picture can be taken once the viewfinder gives the better effect of the image.

C. Mount the light stand with the white light on the baseplate. Adjust the position of the light stand to get the better lighting condition for evidence, then the white light photography can proceed.

D. Place the shadowless light box on the baseplate, and put the evidence on the shadowless light box. Turn on the shadowless light box, the shadow around the evidence will disappear, and the shadowless photography can proceed.

E. Mount the flexible arm on the baseplate, fix the uniform light on the flexible arm, attach the polarizer to the outlet of the uniform light and the analyzer to the camera lens, then the polarized light photography can proceed.

F. Mount the flexible arm on the baseplate, fix the uniform light on the flexible arm, and the color separation photography can proceed by attaching the red, orange, yellow, green and blue light filters to the camera lens respectively .

G. Four conversion adapters ensure that M58mm light filters and analyzers can be attached to lenses of different diameter.

P031 BTGP-IV Polarized light evidence photography stand
